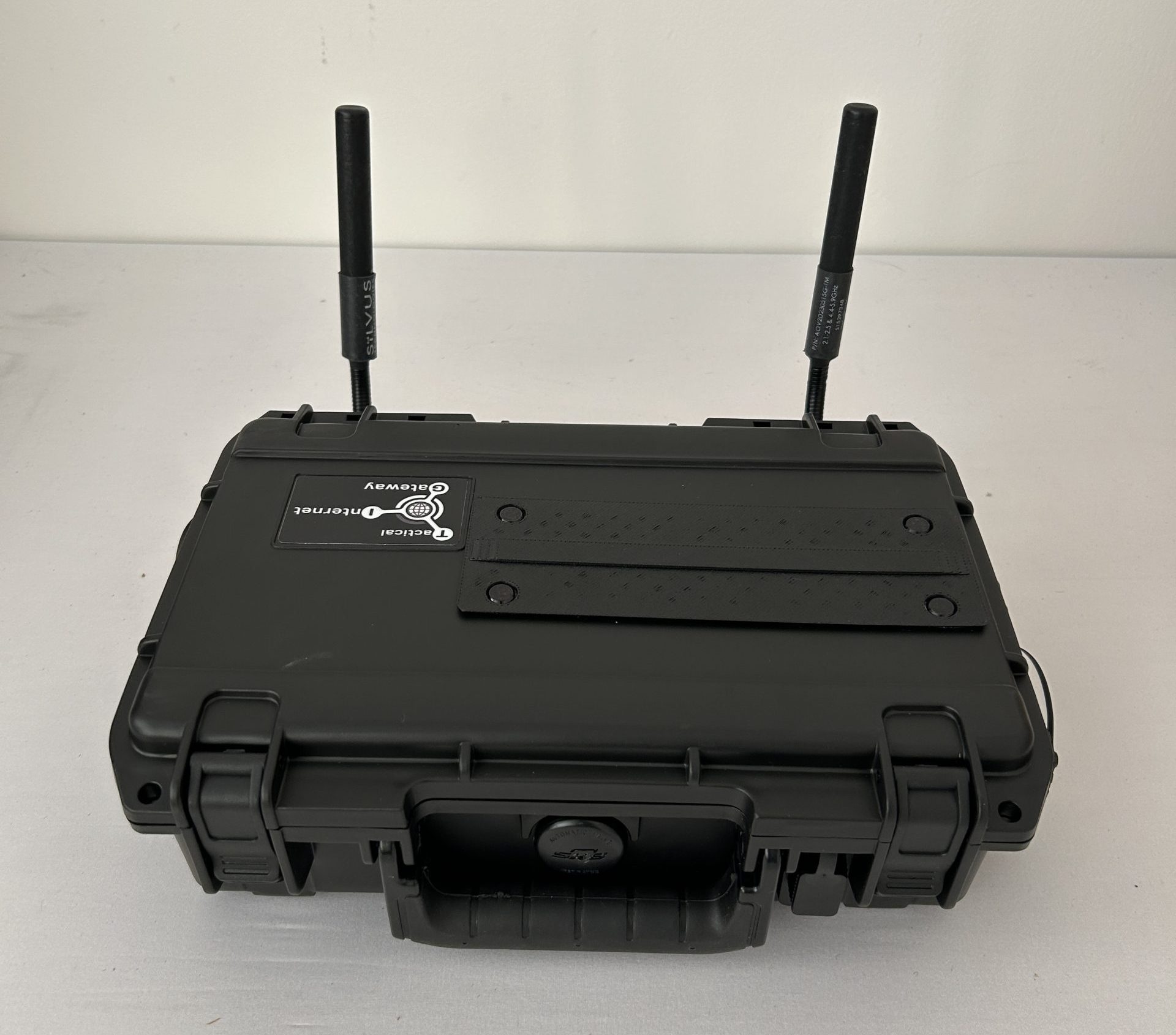

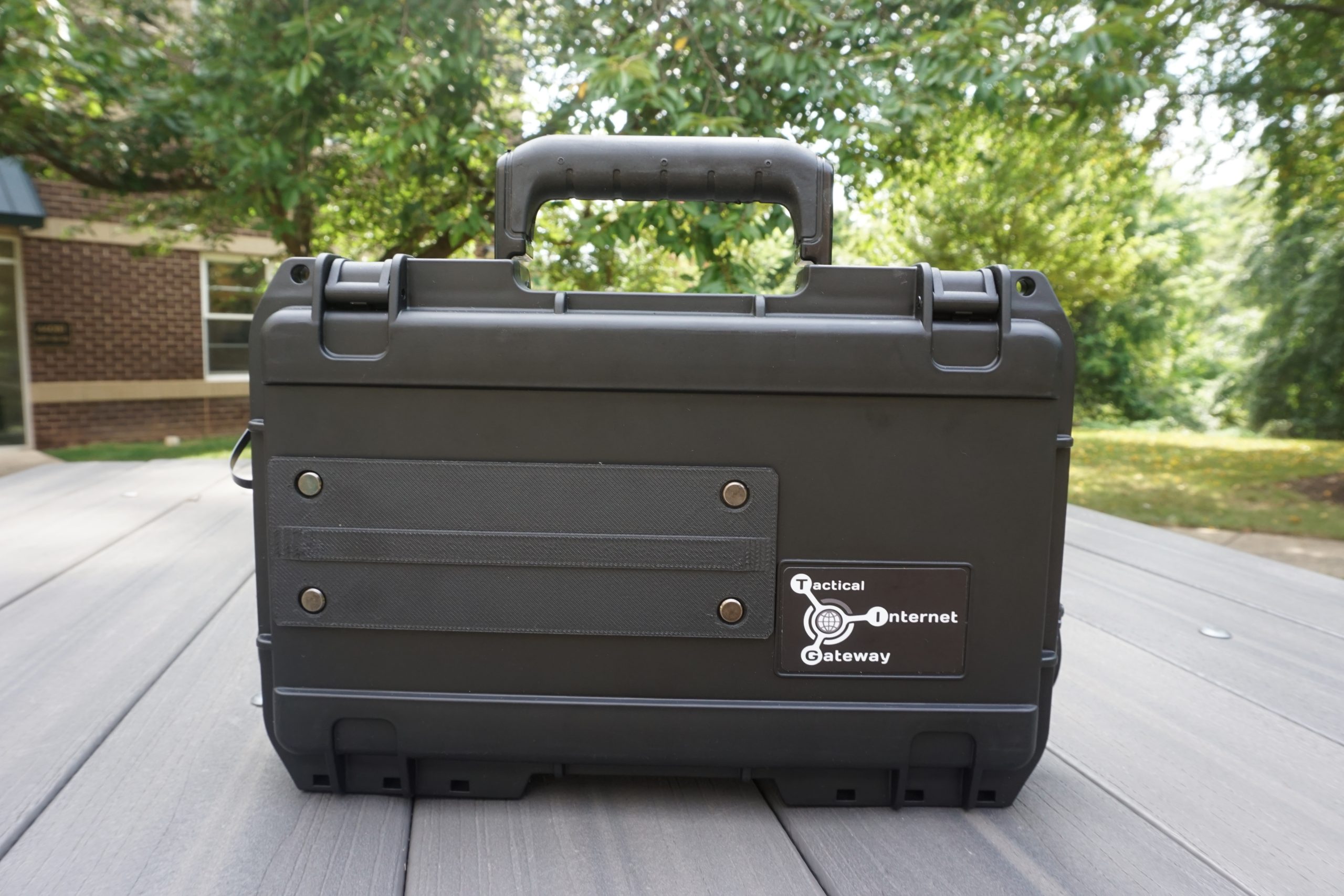

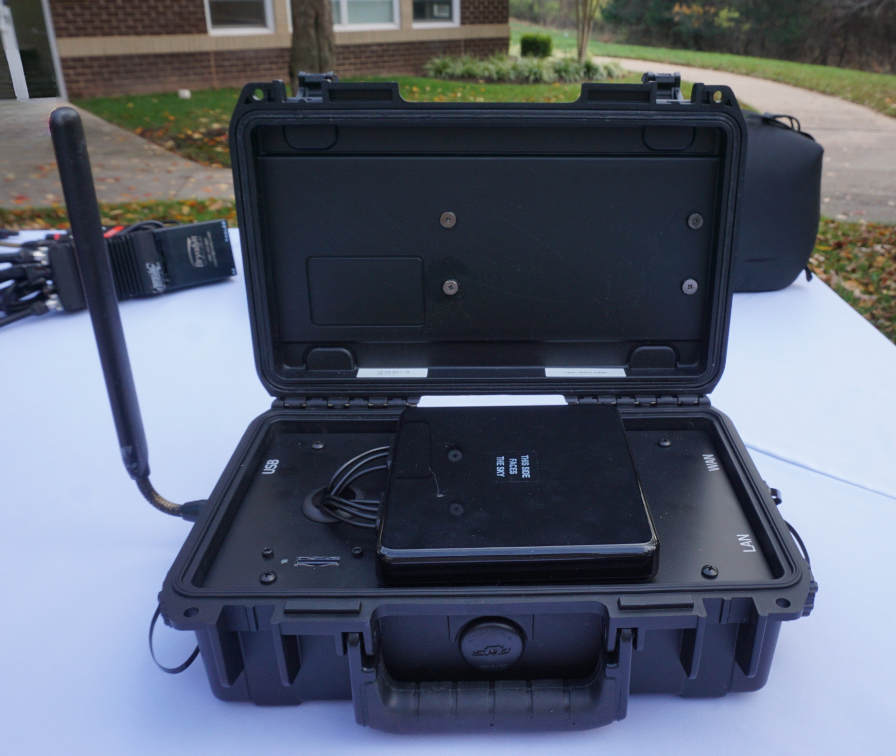

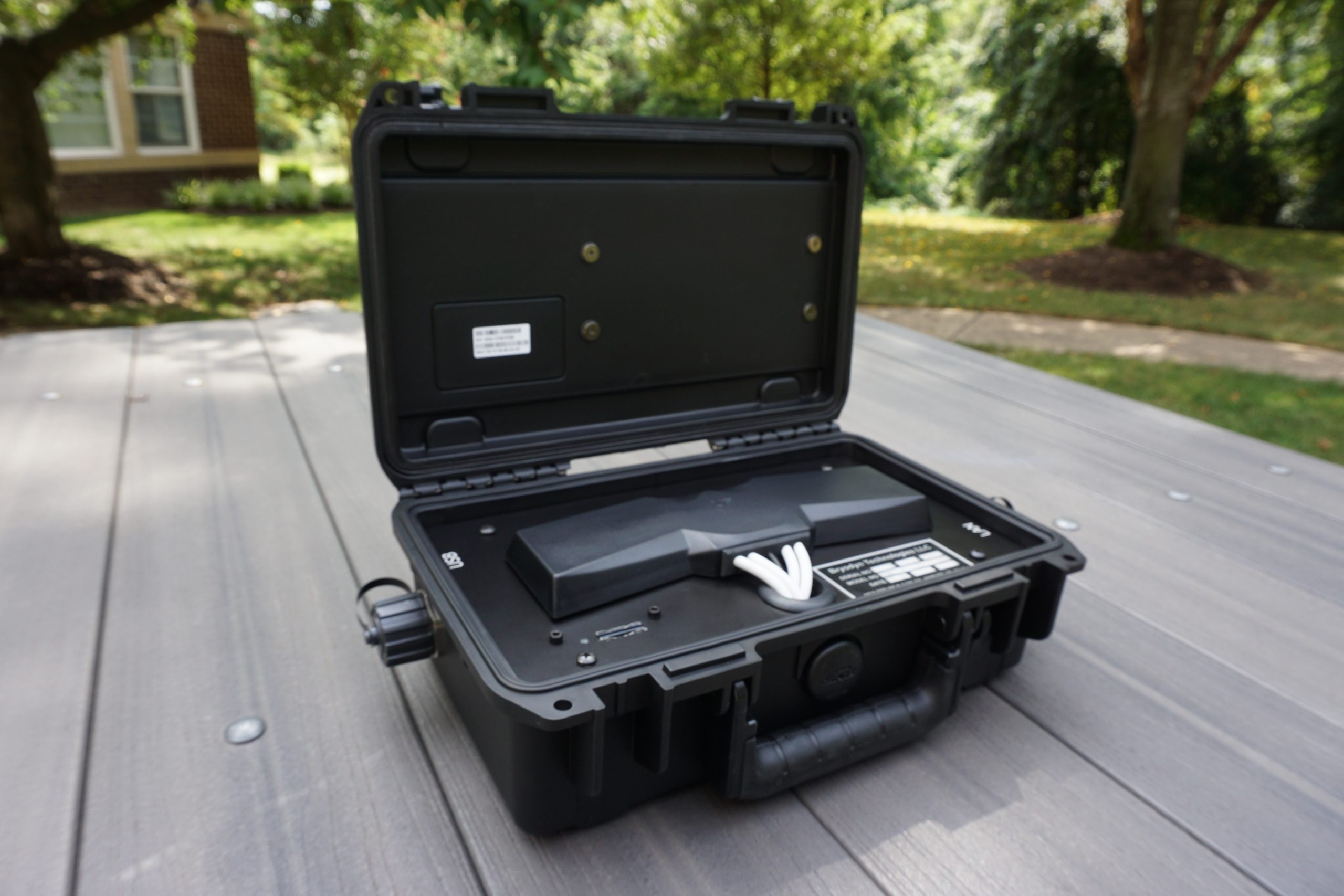

TIG Mini

The TIG Mini is a beyond line-of-sight aggregator for multi-domain operations, enabling the extension and bridging of geographically dispersed networks at the tactical edge.

Weight: 5.5 Pounds

Size: 12.5 (L) x 8 (W) x 4 (H) Inches

Cellular Modems:
LTE: 2x CAT-12
5G: 2x CAT-20

Wi-Fi: 2.4GHz / 5Ghz; Wi-Fi WAN / AP

LAN: 1

WAN: 1

USB: 1

Power: External 12V – 56V DC

TIG Mini TW

The TIG Mini is available with Trellisware’s Barrage Relay technology and TSM Waveform integrated in one low SWaP solution to easily scale and flatten disparate networks of sensors, unmanned systems, and communications. The TIG enables on-the-move-automated PACE functionality across multiple bearer channels, so your battlefield network maintains a resilient connection from the edge for increased situational awareness and decision dominance.

TIG Mini SC

The TIG Mini is available with Silvus’ battle-proven MN-MIMO waveform integrated in one low SWaP solution to easily scale and flatten disparate networks of sensors, unmanned, and ISR systems. The TIG enables on-the-move-automated PACE functionality across multiple bearer channels, so your battlefield network maintains a resilient connection from the edge for increased situational awareness and decision dominance.

Available in:
*Default is Black unless specified

Black

Black

Blue

Blue

Desert Tan

Desert Tan

OD Green

OD Green

Orange

Orange

Red

Red

Yellow

Yellow
